Cookson security grilles secure openings without blocking sightlines. We supply models tailored to retail, parking, stadium, and healthcare entrances where durability and aesthetics both matter.
Model selection snapshot
Visionaire and VistaGard rolling security grilles
ESG10, ESG11, ESG12
- Standard size or rating
- Up to 40 ft wide x 20 ft high; up to five cycles per day, depending on configuration
- Materials and patterns
- Straight, brick, or glazed curtains; aluminum or stainless options by curtain selection
- Best-fit applications
- Storefront glass, service windows, schools, malls, restaurants, and healthcare settings

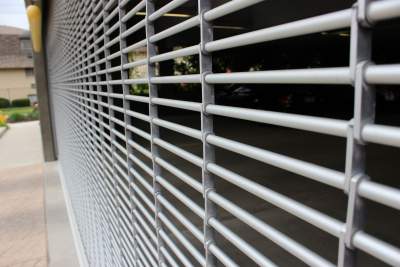

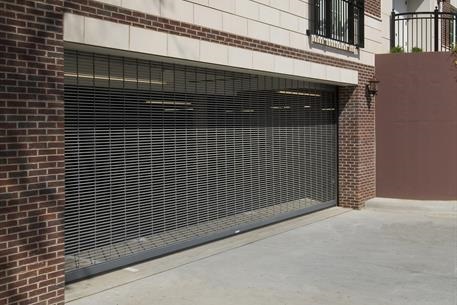

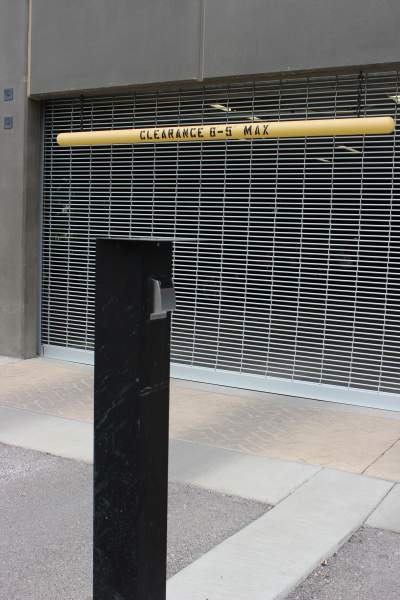

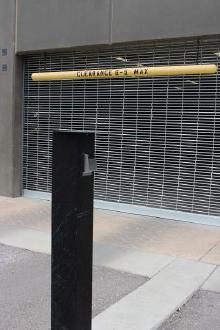

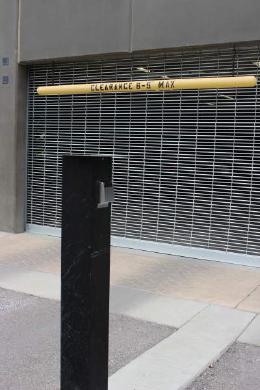

Heavy Duty 5015 rolling grille
5015
- Standard size or rating
- Up to 30 ft wide x 20 ft high; 50,000-cycle construction with a 100,000-cycle upgrade available
- Materials and patterns
- 5/16 in. solid aluminum rods with closer spacing, heavier links, and tube spacers on every rod
- Best-fit applications
- Retail or parking openings that need more security while preserving airflow and visibility
TruCycle security grille
HCESG10, HCESG12
- Standard size or rating
- Up to 30 ft 4 in wide x 19 ft high; 3-year/300,000-cycle warranty positioning
- Materials and patterns
- Straight or brick open-air aluminum curtain; mill, clear anodized, bronze, and black anodized finish options
- Best-fit applications
- High-traffic parking garages and busy retail storefronts where high cycle life is critical
Extreme 300 Series high-performance grille
EPG324, EPG324B
- Standard size or rating
- Up to 30 ft wide x 16 ft high; 2-year/300,000-cycle component warranty positioning
- Materials and patterns
- Straight or brick open-air aluminum curtain with APEX Pro controls and direct-drive operation
- Best-fit applications
- Parking garages, airports, transportation hubs, and other high-traffic openings needing faster operation

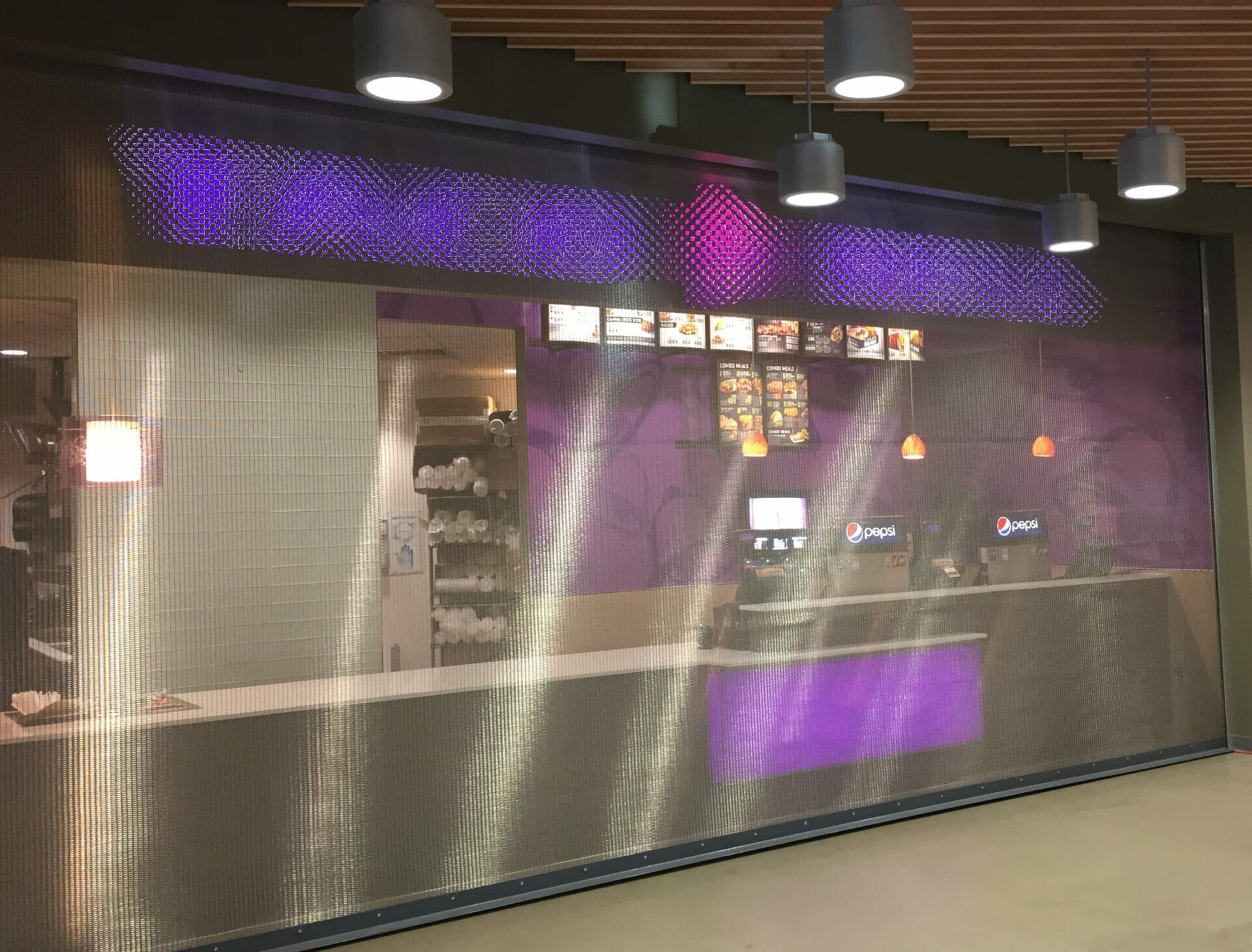

SteelWeave metal mesh grille
EAG10, EAG10C, EAG10V, EAG10S
- Standard size or rating
- Tigris curtain up to 25 ft wide x 20 ft high; Lago curtain up to 19 ft wide x 20 ft high; 50,000-cycle lifetime usage
- Materials and patterns
- Type 316 stainless steel woven mesh with Conceal, Reveal, and Service model layouts
- Best-fit applications
- Storefronts, malls, bars, restaurants, cafeterias, food processing, and attractive space dividers

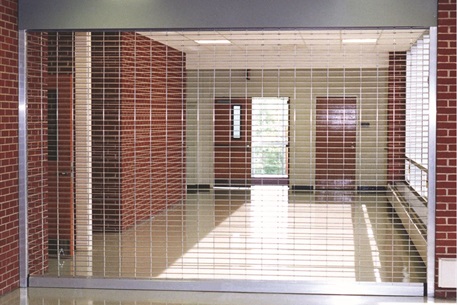

CrossingGard emergency response grille
ERG-IBC
- Standard size or rating
- Up to 24 ft wide x 20 ft high
- Materials and patterns
- Open 5/16 in. rod curtain in aluminum, 300 series stainless steel, or solid galvanized steel
- Best-fit applications
- Access-controlled egress openings in schools, public facilities, and secure corridors that must open during an emergency

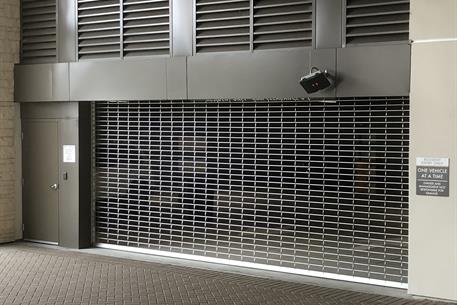

Visionaire MicroCoil grille
ESG10C, ESG12C
- Standard size or rating
- Up to 26 ft wide x 14 ft high in aluminum; 50,000-cycle lifespan
- Materials and patterns
- Straight or brick MicroCoil curtain with 304 stainless steel links and aluminum or stainless finish options
- Best-fit applications
- Retail, city storefront, historic building, school, and other low-headroom openings
Configurations and patterns
- Straight or brick curtain patterns in custom widths and heights
- Compact overhead coil that keeps headroom clear
- Available with closer link spacing on the Cookson 5015 grille for added strength
Specialty options
- CrossingGard models that release in emergencies to meet egress requirements
- TruCycle springless security grilles for high-traffic applications with 3-year/300,000-cycle warranty positioning
- Extreme 300 Series grilles for faster operation with 2-year/300,000-cycle component warranty positioning
- SteelWeave premium mesh grille for upscale applications such as restaurants and bars
Installed and maintained locally
From specifying guides and operators to performing repairs, our technicians keep Cookson grilles operating smoothly in high-traffic public areas.
Next step
Plan service and installation
Review related service pages and connect with a nearby showroom to finalize scope, measurements, and scheduling.
